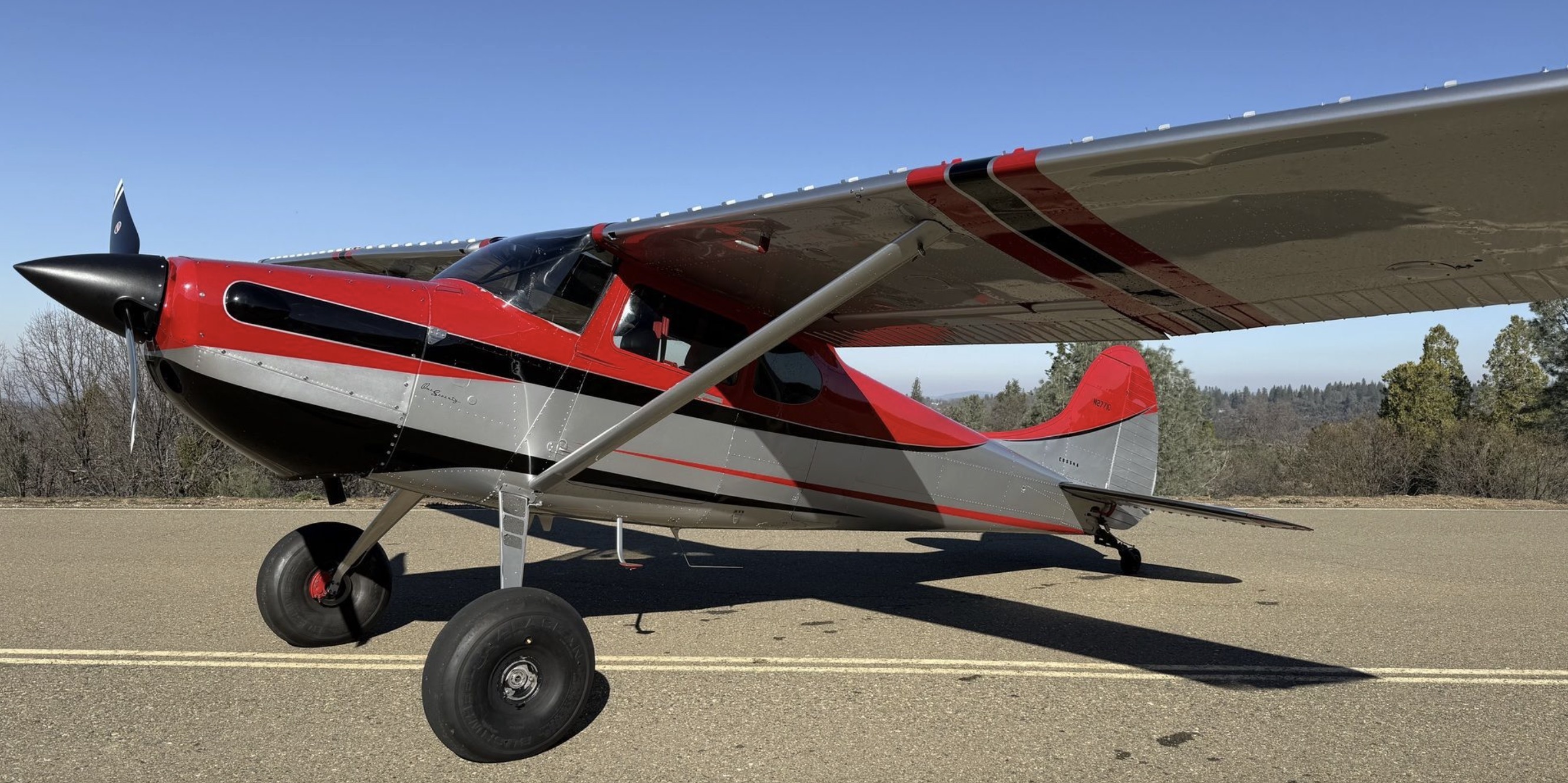

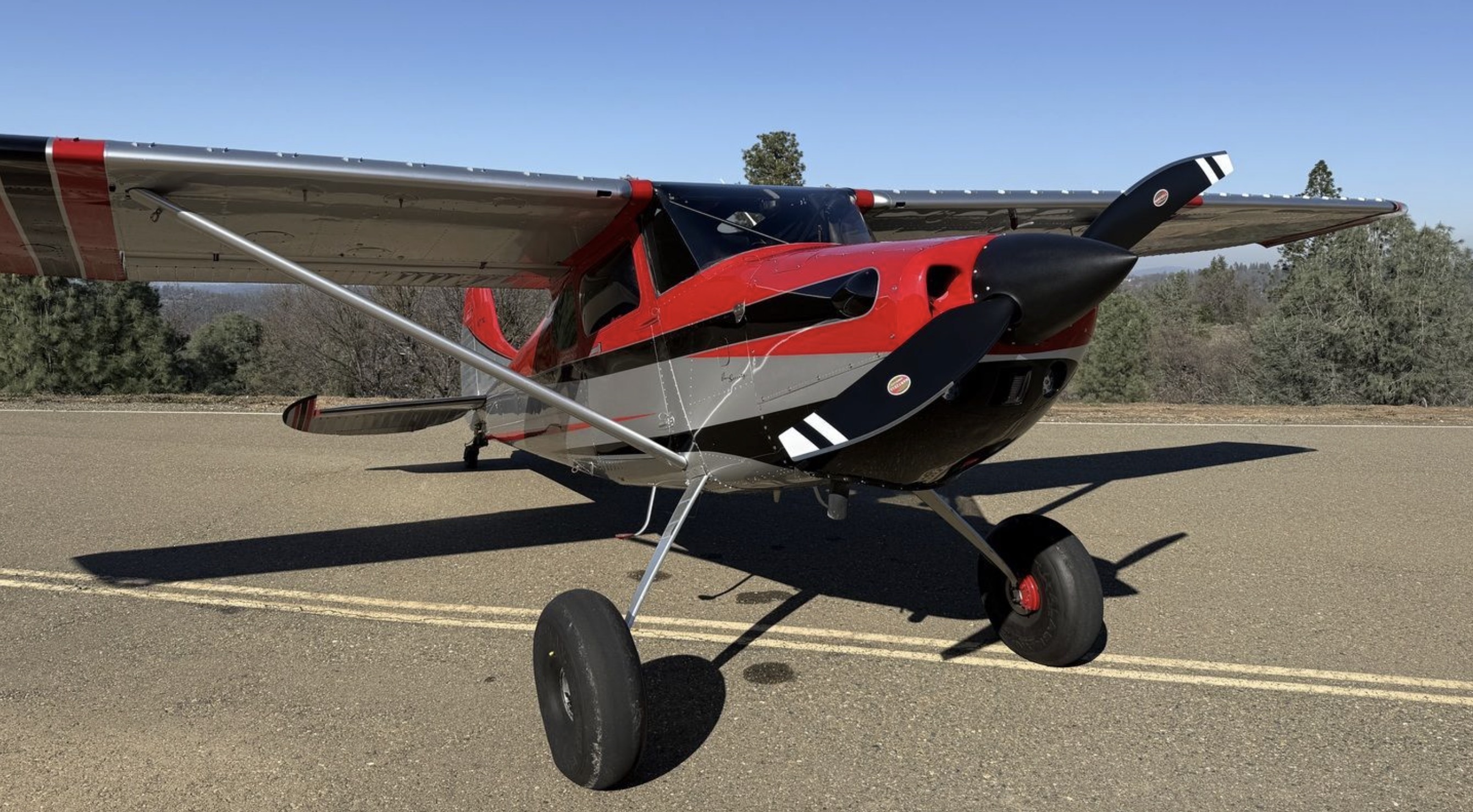

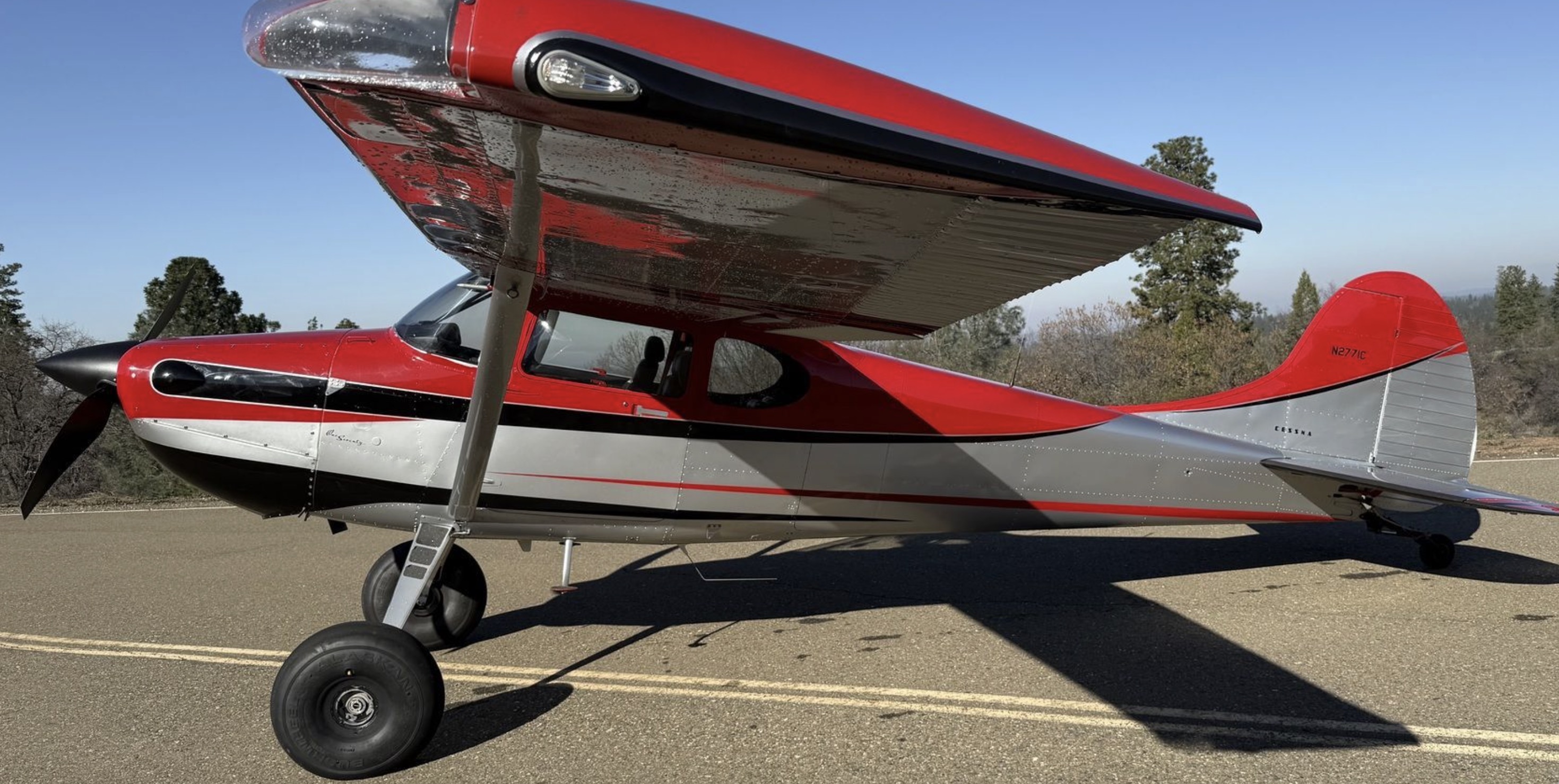

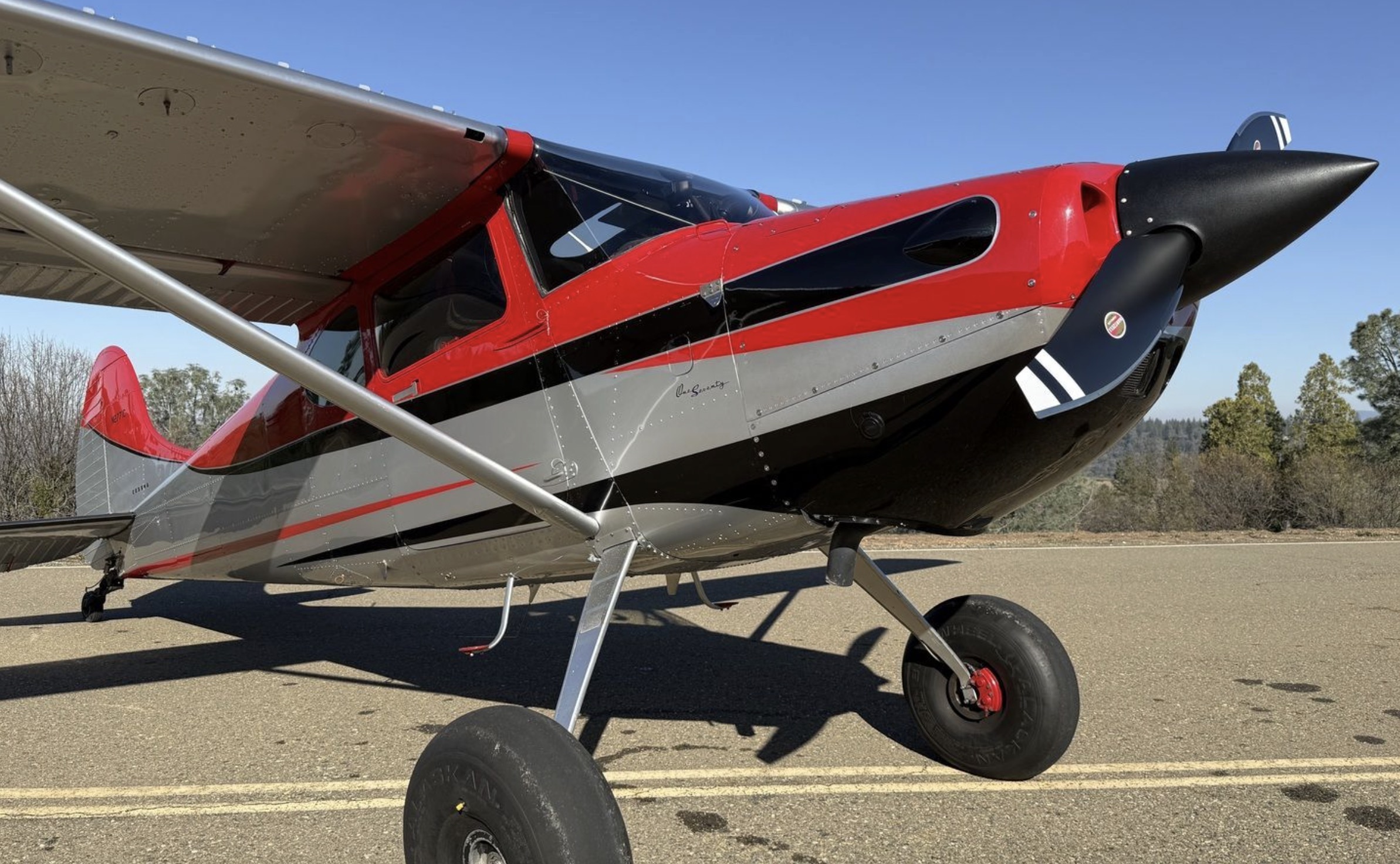

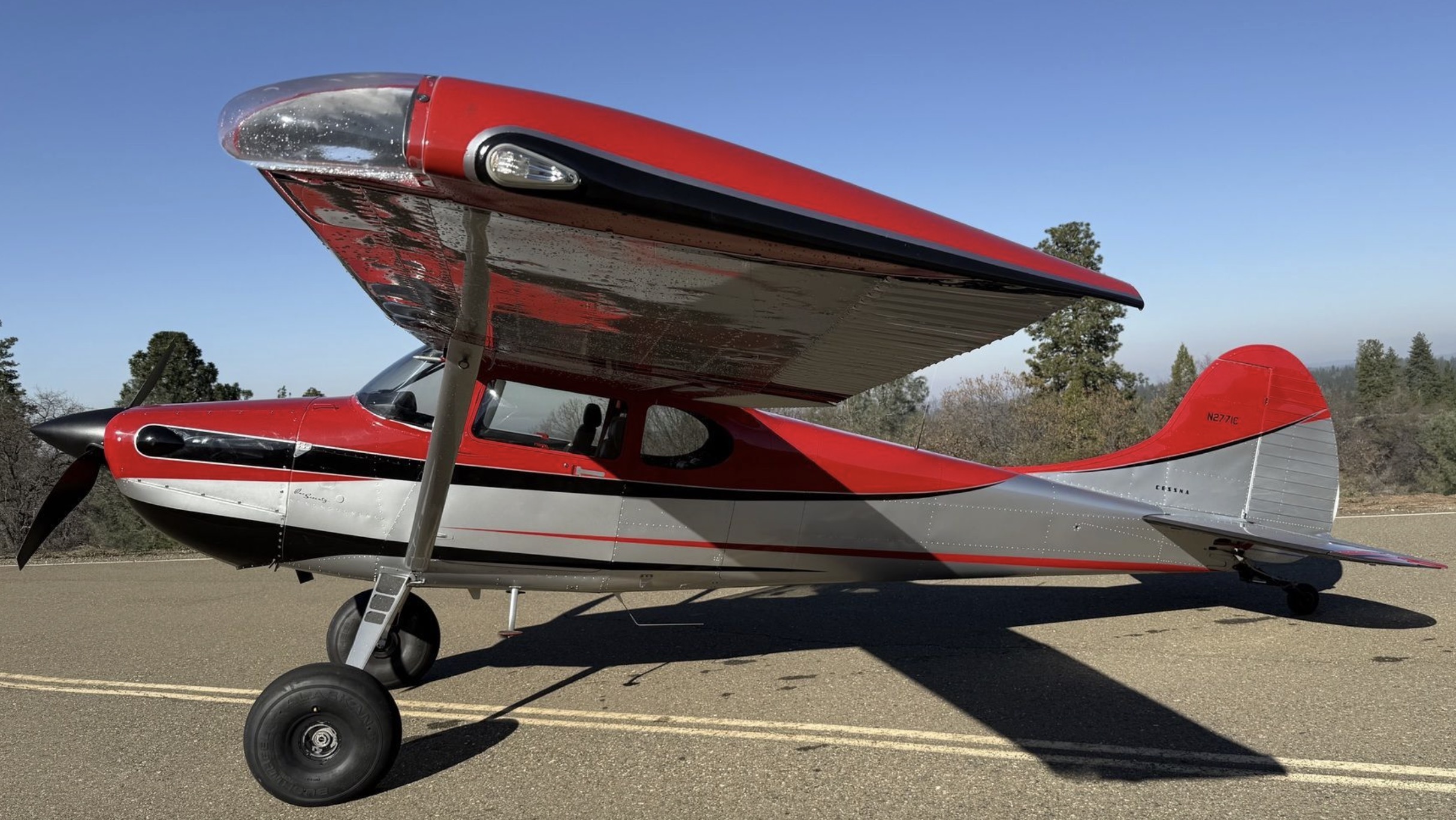

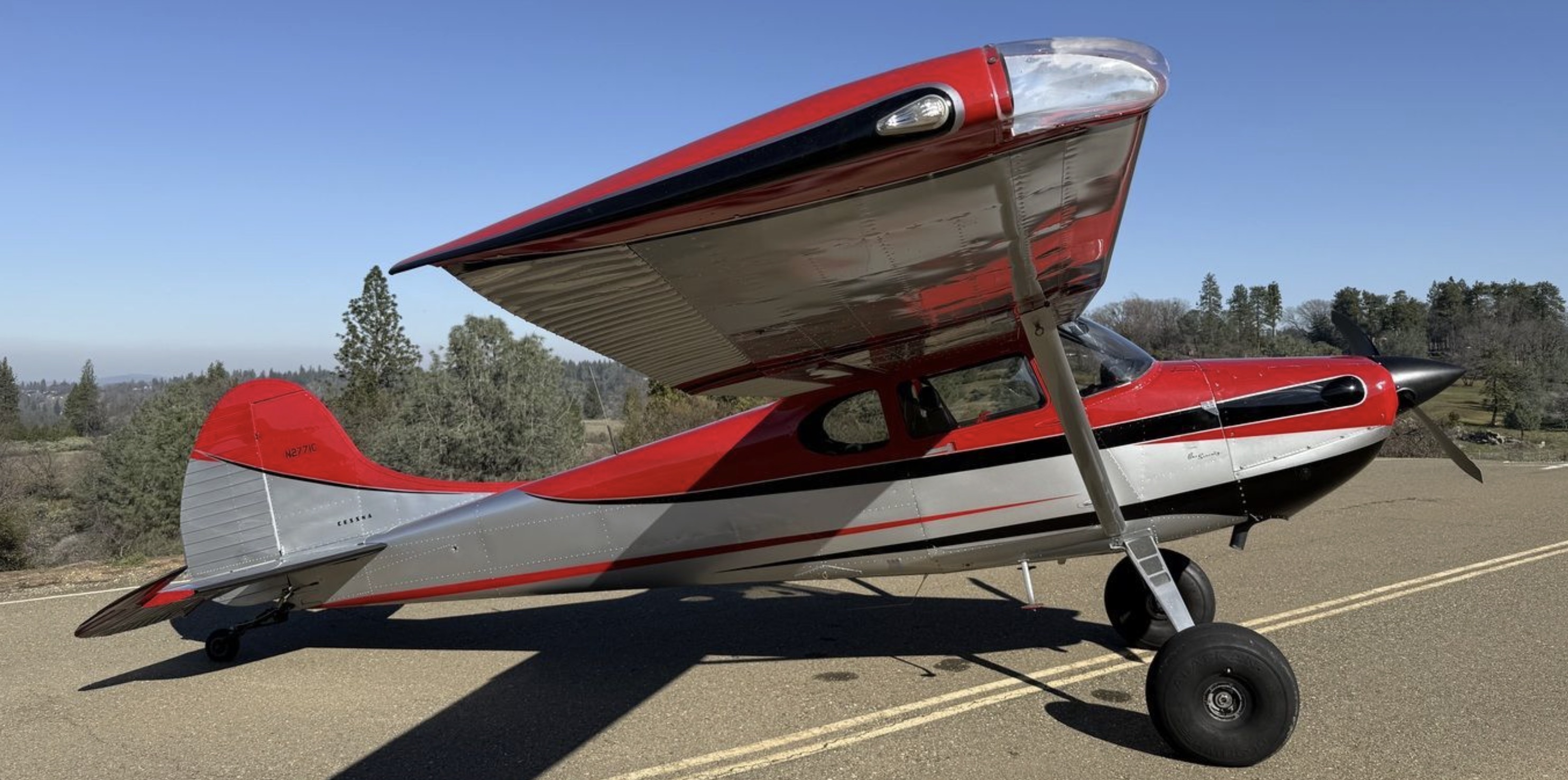

1954 Cessna 170B

1954 Cessna 170B located in Placerville, California with 2,992 hours total time. Lycoming IO-360-M1A (Ly-Con) with 429 hours SMOH. Hartzell 84-inch carbon fiber composite propeller with 0 hours SPOH following prop strike teardown (0 since IRAN). IFR avionics include Garmin GTN 750Xi, dual Garmin GI 275 (ADI/HSI), JPI EDM-930, and ADS-B Out. Factory float kit, Sportsman STOL kit, Micro-dynamics VG kit, and ski kit are listed. Annual due January 2027.

Details

Year/Make/Model: 1954 Cessna 170B
Registration: N2771C
Serial Number: 26315
Location: Placerville, CA, USA
Flight Rules: IFR
Classification: Antique/Classic; Amphibious/Float (as listed)
Airframe Total Time: 2,992 hours
Useful Load: 738 lb
Annual Due: January 2027

Engine / Prop

Engine: Lycoming IO-360-M1A (Ly-Con)
Engine Time: 429 hours SMOH
Engine note: listed as fuel-injected 180 HP; dyno’d at 198 HP (as listed)
IRAN/teardown: 0 since prop strike teardown (as listed)
Propeller: Hartzell 84-inch 2-blade carbon fiber composite
Prop Time: 0 hours SPOH

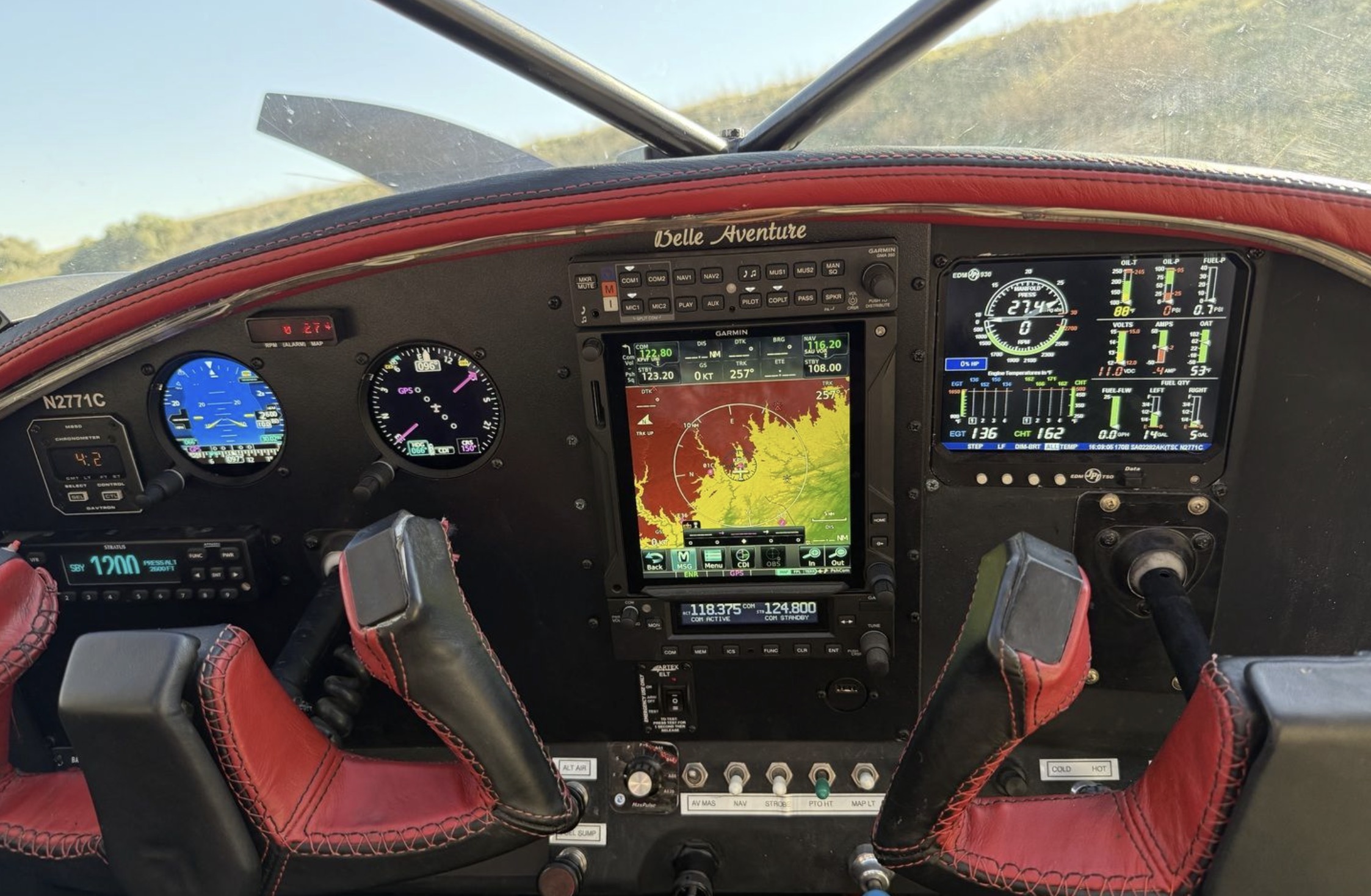

Avionics / Electrical

Garmin GTN 750Xi IFR GPS/Nav/Com
Garmin GMA 340 audio panel
Garmin GI 275 ADI
Garmin GI 275 HSI
Garmin GTR 225B digital com
Stratus/Appareo ADS-B Out transponder (as listed)
JPI EDM-930 graphic color engine management system
Davtron M850 digital timer
Remote 406 ELT arming panel
4-place intercom
Dual yoke-mounted PTT
Starter button; avionics master switch
12V USB power outlet

Airframe / Mods

Factory float kit
Fuel capacity: 66 gallons (wet wing; Cutlass 172RG wings listed)
Sportsman STOL kit
Micro-dynamics VG kit
Ski kit
Later-style doors with overcenter latches (as listed)
Fuel system routed down front and rear door pillars (as listed)
Fuel drains: five per wing plus belly fuel drains (as listed)
Seats: square-backed 172 seats; dual articulating front seats with double pin system (as listed)
BAS folding rear jump seats
BAS inertia reel shoulder harnesses
BAS tailcone lift handles
Rosen visors; door stewards
Flat floor extended baggage; cargo tie-downs
Baggage door (like 1955 180, as listed)
Both front windows openable; bubble windows
Windshield V brace
Lighting: LED pulse/landing lights in wingtips; LED landing lights in nose
Air filter: K&N
Tires: 26-inch Alaska Bushwheels
Wheels/brakes: double puck Cleveland wheels and brakes
Gear: forward-raked 180 gear legs
Spinner: metal spinner
Skylights: Cessna 182 skylights (as listed)

Interior / Exterior

Interior: custom black leather over NASA foam with red piping/stitching; rated 8/10 (as listed)
Exterior: custom silver-gray metallic/red/black scheme; rated 8/10 (as listed)

History Notes (as listed)

Restoration noted in 2010 with fuselage skins removed/replaced and zinc chromated; Cutlass RG wings internally epoxied
Award: bronze Lindy Award at Oshkosh (2017) (as listed)
Damage/repair: recent minor ground loop and prop strike; wingtip, horizontal stabilizer, and cabin roof damage noted; engine teardown performed and propeller replaced (as listed)

Price
$359,000 USD
