$195,000
Description:
1946 Piper PA-12 Super Cruiser with 5,649 hours total time, extensively rebuilt in 2026 around a new Dakota Cub fuselage with numerous PA-18 and backcountry modifications. Powered by a 150 HP Lycoming O-320 with 402 hours since new and equipped with a McCauley 8142 propeller. The rebuild included new covering, overhauled wings with new spars, new tail components, new interior and glass, 61-gallon fuel capacity, 29-inch Bushwheels, and extensive replacement of electrical, control, engine-accessory, and airframe components.
- Registration: N3688M
- Serial Number: 12-2634
- Total Airframe Time: 5,649 hours
- Complete rebuild completed in 2026
- Three-seat configuration
- Gross Weight: 1,935 lbs.
- Useful Load: 704 lbs.
- Engine: Lycoming O-320
- Engine Power: 150 HP
- Engine Time: 402 hours since new
- McCauley 8142 propeller
- Propeller time not provided

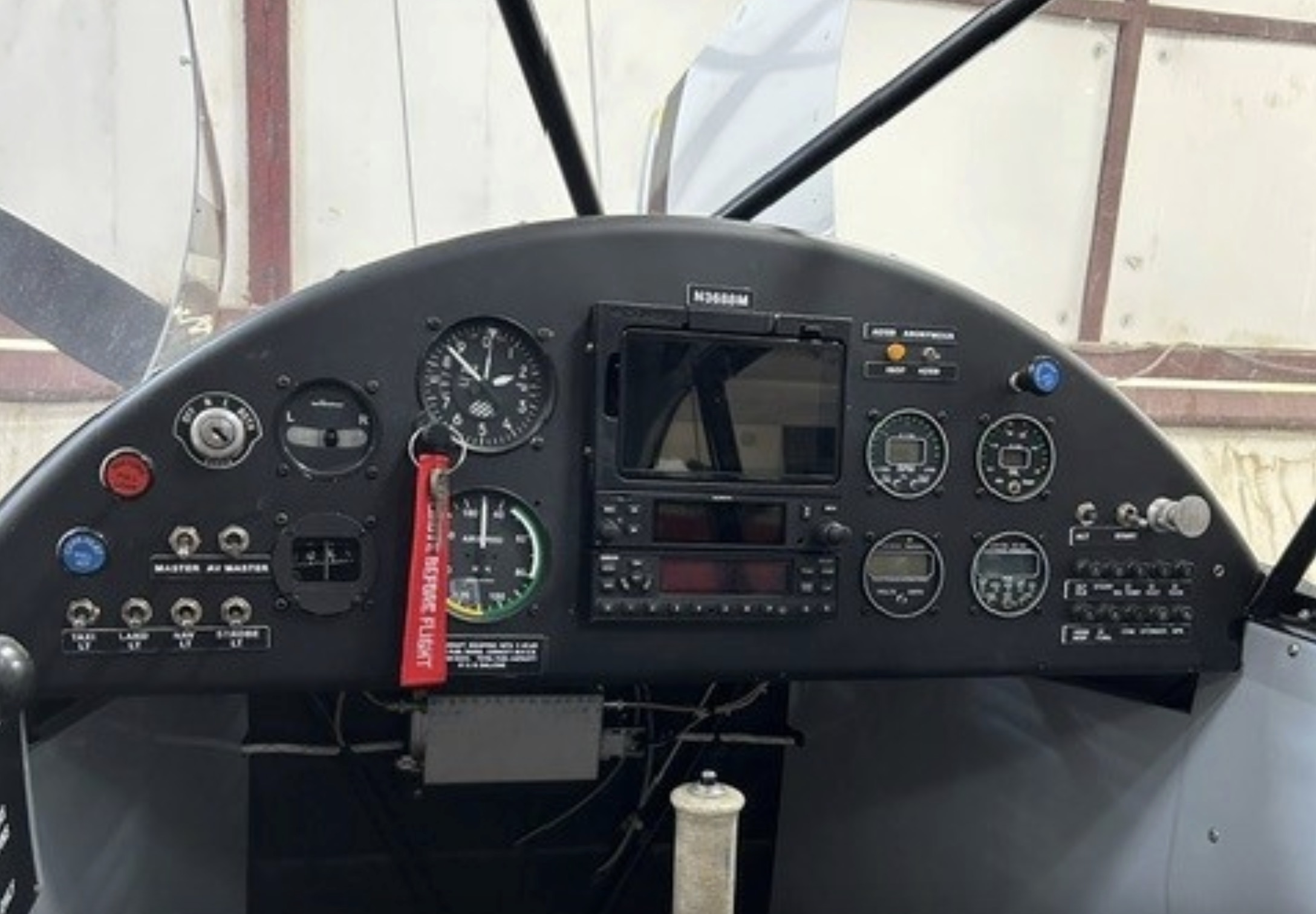

- Lightweight instrument panel
- Garmin GTR 205 COM with intercom
- Garmin GTX 327 transponder
- Garmin GDL 82 ADS-B Out
- Garmin panel-mounted moving-map GPS
- New Dakota Cub fuselage with custom modifications
- PA-18 main landing gear
- PA-18 adjustable front seat
- PA-18 horizontal stabilizer and elevators
- PA-18 elevator control system
- PA-18 flap control system
- PA-18 exhaust with new muffler and shrouds
- Left-side seaplane door providing dual-door access
- Welded rear seaplane fittings
- Overhead X-bracing
- Skylight
- Rear baggage door
- Removable baggage-area crossbar
- Welded shoulder-harness brackets
- New Atlee Dodge right-side boarding step
- New landing-gear cabane
- Atlee Dodge landing-gear safety cables
- Six-bolt Cleveland wheels
- Double-puck brakes
- Brake boosters
- 29″ Bushwheels
- Scott 3200 tailwheel with Baby Bushwheel fork, wheel and tire
- Atlee Dodge 61-gallon long-range fuel system
- Atlee Dodge spar-reinforcement brackets
- Wings overhauled with new spars and NOS ribs
- Extended flaps
- Ailerons relocated outboard
- Squared wingtips with end plates
- Wing modifications field approved according to seller
- New Univair lifetime wing struts and jury struts
- New stainless-steel flight-control cables
- New 4130-steel rudder
- Whelen tail beacon
- Whelen wingtip strobes
- New firewall, nose bowl and cowling
- New boot cowling
- New instrument panel
- New glass throughout
- New wiring, circuit breakers and switches
- New engine-control cables
- EI electronic engine and electrical instrumentation
- Fuel-flow and totalizer instrumentation
- Hooker harnesses front and rear
- Hawker sealed battery
- Under-seat battery installation
- Stoddard engine mount
- Overhauled magnetos at 2026 engine installation
- Overhauled carburetor at 2026 engine installation
- New Champion spark plugs
- New gascolator
- Overhauled oil cooler
- New engine baffling
- New engine hoses and associated hardware
- Sky-Tec lightweight starter
- Sky-Tec lightweight alternator
- New leather interior and metal interior panels
- New exterior covering and paint completed in 2026
- Seller reports rebuild and modifications are documented in aircraft records
- Annual inspection due June 2027
Point of Contact: Skywagons.com — Arizona
